Standards:
IEC60092-350
IEC60092-351
IEC60092-352
IEC60092-353
IEC60092-359
IEC60228
IEC60331
IEC60332
Application:
The cable is intended for shipboard and off-shore building to transmit power.

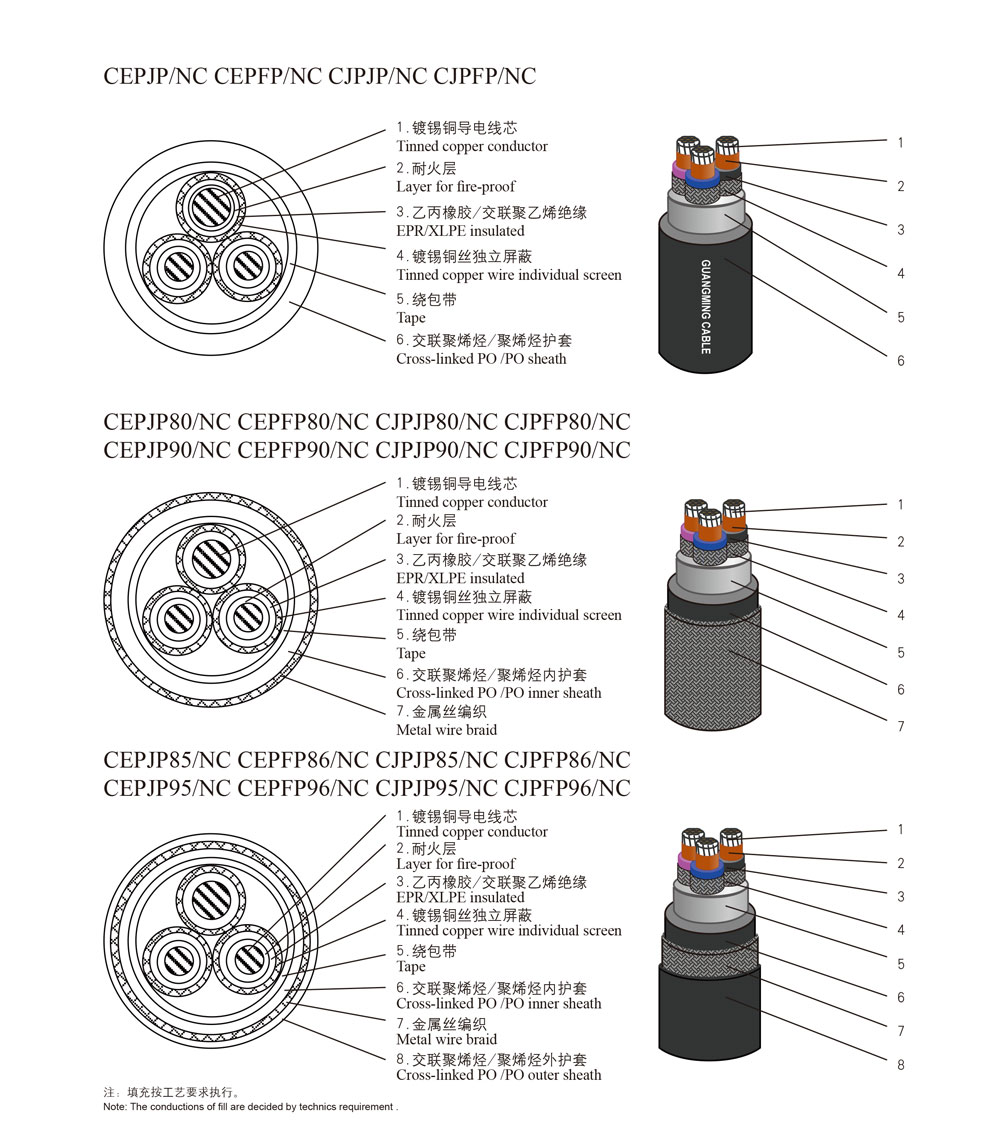

1- conductor finned copper wire
2- fire-resisting lay MICA tape
3- insulation XLPE
4- Filler
5- Tape
6- Inner sheath PO/cross-linked PO
7- Armour Tinned copper wire or galvanized
8- Outer sheath PO/cross-linked PO
型号 Type | 名称 Description | 产品标准 Standard |
CEPF/NC | 乙丙绝缘聚烯径护套船用电力电缆,NC型 EPR insulation PO sheath shipboard power cable, Type NC | IEC60092-350 IEC60092-353 IEC60331 IEC60332-3A |
CEPF80/NC | 乙丙绝缘聚烯径内护套镀锡铜丝编织铠装船用电力电缆,NC型 EPR insulation PO sheath tinned copper wire braided shipboard power cable, Type NC | |
CEPF90/NC | 乙丙绝缘聚烯径内护套镀锌钢丝编织铠装船用电力电缆,NC型 EPR insulation PO sheath galvanized steel wire braided shipboard power cable, Type NC | |
CEPF86/NC | 乙丙绝缘聚烯径内护套镀锡铜丝编织铠装聚烯径外护套船用电力电缆,NC型 EPR insulation PO inner sheath tinned copper wire braided PO outer sheath shipboard power cable, Type NC | |
CEPF96/NC | 乙丙绝缘聚烯径内护套镀锌钢丝编织铠装聚烯径外护套船用电力电缆,NC型 EPR insulation PO inner sheath galvanized steel wire braided PO outer sheath shipboard power cable, Type NC | |
CEPJ/NC | 乙丙绝缘交联聚烯径护套船用电力电缆,NC型 EPR insulation cross-linked PO sheath shipboard power cable, Type NC | |
CEPJ80/NC | 乙丙绝缘交联聚烯径内护套镀锡铜丝编织铠装船用电力电缆,NC型 EPR insulated cross-linked PO sheath tinned copper wire braided shipboard power cable, Type NC | |
CEPJ90/NC | 乙丙绝缘交联聚烯径内护套镀锌钢丝编织铠装船用电力电缆,NC型 EPR insulated cross-linked PO sheath galvanized steel wire braided shipboard power cable, Type NC | |
CEPJ85/NC | 乙丙绝缘交联聚烯径内护套镀锡铜丝编织铠装交联聚烯径外护套船用电力电缆,NC型 EPR insulated cross-linked PO inner sheath tinned copper wire braided cross-linked PO outer sheath shipboard power cable, Type NC | |
CEPJ95/NC | 乙丙绝缘交联聚烯径内护套镀锌钢丝编织铠装交联聚烯径外护套船用电力电缆,NC型 EPR insulation cross-linked PO inner sheath galvanized steel wire braided cross-linked PO outer sheath shipboard power cable, Type NC |
型号 Type | 名称 Description | 产品标准 Standard |
CJPF/NC | 交联聚乙烯绝缘聚烯径护套船用电力电缆,NC型 XLPE insulation PO sheath shipboard power cable, Type NC | IEC60092-350 IEC60092-353 IEC60331 IEC60332-3A |
CJPF80/NC | 交联聚乙烯绝缘聚烯径内套镀锡铜丝编织铠装船用电力电缆,NC型 XLPE insulation PO sheath tinned copper wire braided shipboard power cable, Type NC | |
CJPF90/NC | 交联聚乙烯绝缘聚烯径内套镀锌钢丝编织铠装船用电力电缆,NC型 XLPE insulation PO sheath galvanized steel wire braided shipboard power cable, Type NC | |
CJPF86/NC | 交联聚乙烯绝缘聚烯径内套镀锡铜丝编织铠装聚烯径外套船用电力电缆,NC型 XLPE insulation PO inner sheath tinned copper wire braided PO outer sheathed shipboard power cable, Type NC | |
CJPF96/NC | 交联聚乙烯绝缘聚烯径内套镀锌钢丝编织铠装聚烯径外套船用电力电缆,NC型 XLPE insulation PO inner sheath galvanized steel wire braided PO outer sheathed shipboard power cable, Type NC | |
CJPJ/NC | 交联聚乙烯绝缘交联聚烯径护套船用电力电缆,NC型 XLPE insulation cross-linked PO sheath shipboard power cable, Type NC | |
CJPJ80/NC | 交联聚乙烯绝缘交联聚烯径内套镀锡铜丝编织铠装船用电力电缆,NC型 XLPE insulated cross-linked PO sheathed tinned copper wire braided shipboard power cable, Type NC | |
CJPJ90/NC | 交联聚乙烯绝缘交联聚烯径内套镀锌钢丝编织铠装船用电力电缆,NC型 XLPE insulated cross-linked PO sheathed galvanized steel wire braided shipboard power cable, Type NC | |
CJPJ85/NC | 交联聚乙烯绝缘交联聚烯径内套镀锡铜丝编织铠装交联聚烯径外套船用电力电缆,NC型 XLPE insulated cross-linked PO inner sheathed tinned copper wire braided cross-linked PO outer sheathed shipboard power cable, Type NC | |
CJPJ95/NC | 交联聚乙烯绝缘交联聚烯径内套镀锌钢丝编织铠装交联聚烯径外套船用电力电缆,NC型 XLPE insulation cross-linked PO inner sheath galvanized steel wire braided cross-linked PO outer sheath shipboard power cable, Type NC | |
CJPJR/NC | 交联聚乙烯绝缘交联聚烯径护套船用电力软电缆,NC型 XLPE insulation cross-linked PO sheath shipboard flexible power cable, Type NC | |
CJPFR/NC | 交联聚乙烯绝缘聚烯径护套船用电力软电缆,NC型 XLPE insulation PO sheath shipboard flexible power cable, Type NC |
型号 Type | 名称 Description | 产品标准 Standard |
CEPFP/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽聚烯径护套船用电力电缆,NC型 EPR insulation tinned copper wire braided individual screen PO sheath shipboard power cable, Type NC | IEC60092-350 IEC60092-353 IEC60331 IEC60332-3A |
CEPFP80/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锡铜丝编织铠装船用电力电缆,NC型 EPR insulation tinned copper wire braided individual screen PO sheath tinned copper wire braided shipboard power cable, Type NC | |
CEPFP90/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锌钢丝编织铠装船用电力电缆,NC型 EPR insulation tinned copper wire braided individual screen PO sheath galvanized steel wire braided shipboard power cable, Type NC | |
CEPFP86/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锡铜丝编织铠装聚烯径外套船用电力电缆,NC型 EPR insulation tinned copper wire braided individual screen PO inner sheath tinned copper wire braided PO outer sheath shipboard power cable, Type NC | |
CEPFP96/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锌钢丝编织铠装聚烯径外套船用电力电缆,NC型 EPR insulation tinned copper wire braided individual screen PO inner sheath galvanized steel wire braided PO outer sheath shipboard power cable, Type NC | |
CEPJP/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽交联聚烯径护套船用电力电缆,NC型 EPR insulation tinned copper wire braided individual screen cross-linked PO sheath shipboard power cable, Type NC | |
CEPJP80/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽交联聚烯径内套镀锡铜丝编织铠装船用电力电缆,SC型 EPR insulated tinned copper wire braided individual screen cross-linked PO sheath tinned copper wire braided shipboard power cable, Type NC | |
CEPJP90/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽交联聚烯径内套镀锌钢丝编织铠装船用电力电缆,NC型 EPR insulated tinned copper wire braided individual screen cross-linked PO sheath galvanized steel wire braided shipboard power cable, Type NC | |
CEPJP85/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽交联聚烯径内套镀锡铜丝编织铠装交联聚烯径外套船用电力电缆,NC型 EPR insulated tinned copper wire braided individual screen cross-linked PO inner sheath tinned copper wire braided cross-linked PO outer sheath shipboard power cable, Type NC | |
CEPJP95/NC | 乙丙绝缘镀锡铜丝编织独立屏蔽交联聚烯径内套镀锌钢丝编织铠装交联聚烯径外套船用电力电缆,NC型 EPR insulation tinned copper wire braided individual screen cross-linked PO inner sheath galvanized steel wire braided cross-linked PO outer sheath shipboard power cable, Type NC |
型号 Type | 名称 Description | 产品标准 Standard |
CJPFP/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚烯径护套船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen PO sheath shipboard power cable, Type NC | IEC60092-350 IEC60092-353 IEC60331 IEC60332-3A |
CJPFP80/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锡铜丝编织铠装船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen PO sheath tinned copper wire braided shipboard power cable, Type NC | |
CJPFP90/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锌钢丝编织铠装船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen PO sheath galvanized steel wire braided shipboard power cable, Type NC | |
CJPFP86/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锡铜丝编织铠装聚烯径外套船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen PO inner sheath tinned copper wire braided PO outer sheathed shipboard power cable, Type NC | |
CJPFP96/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锌钢丝编织铠装聚烯径外套船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen PO inner sheath galvanized steel wire braided PO outer sheathed shipboard power cable, Type NC | |
CJPJP/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽交联聚烯径护套船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen cross-linked PO sheath shipboard power cable, Type NC | |
CJPJP80/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽交联聚烯径内套镀锡铜丝编织铠装船用电力电缆,NC型 XLPE insulated tinned copper wire braided individual screen cross-linked PO sheathed tinned copper wire braided shipboard power cable, Type NC | |
CJPJP90/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽交联聚烯径内套镀锌钢丝编织铠装船用电力电缆,NC型 XLPE insulated tinned copper wire braided individual screen cross-linked PO sheathed galvanized steel wire braided shipboard power cable, Type NC | |
CJPJP85/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽交联聚烯径内套镀锡铜丝编织铠装交联聚烯径外套船用电力电缆,NC型 XLPE insulated tinned copper wire braided individual screen cross-linked PO inner sheathed tinned copper wire braided cross-linked PO outer sheathed shipboard power cable, Type NC | |
CJPJP95/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽交联聚烯径内套镀锌钢丝编织铠装交联聚烯径外套船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen cross-linked PO inner sheath galvanized steel wire braided cross-linked PO outer sheath shipboard power cable, Type NC |
型号 Type | 名称 Description | 产品标准 Standard |

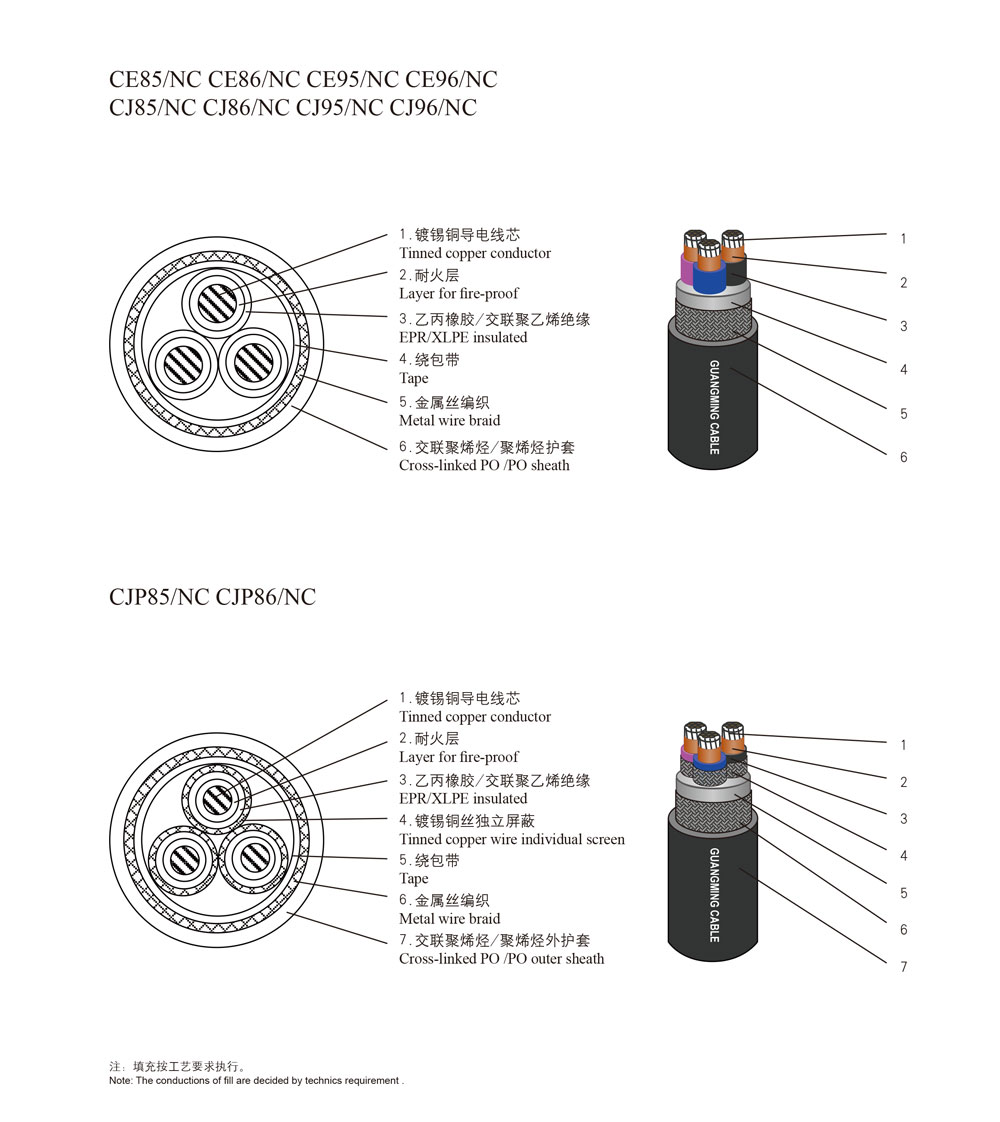

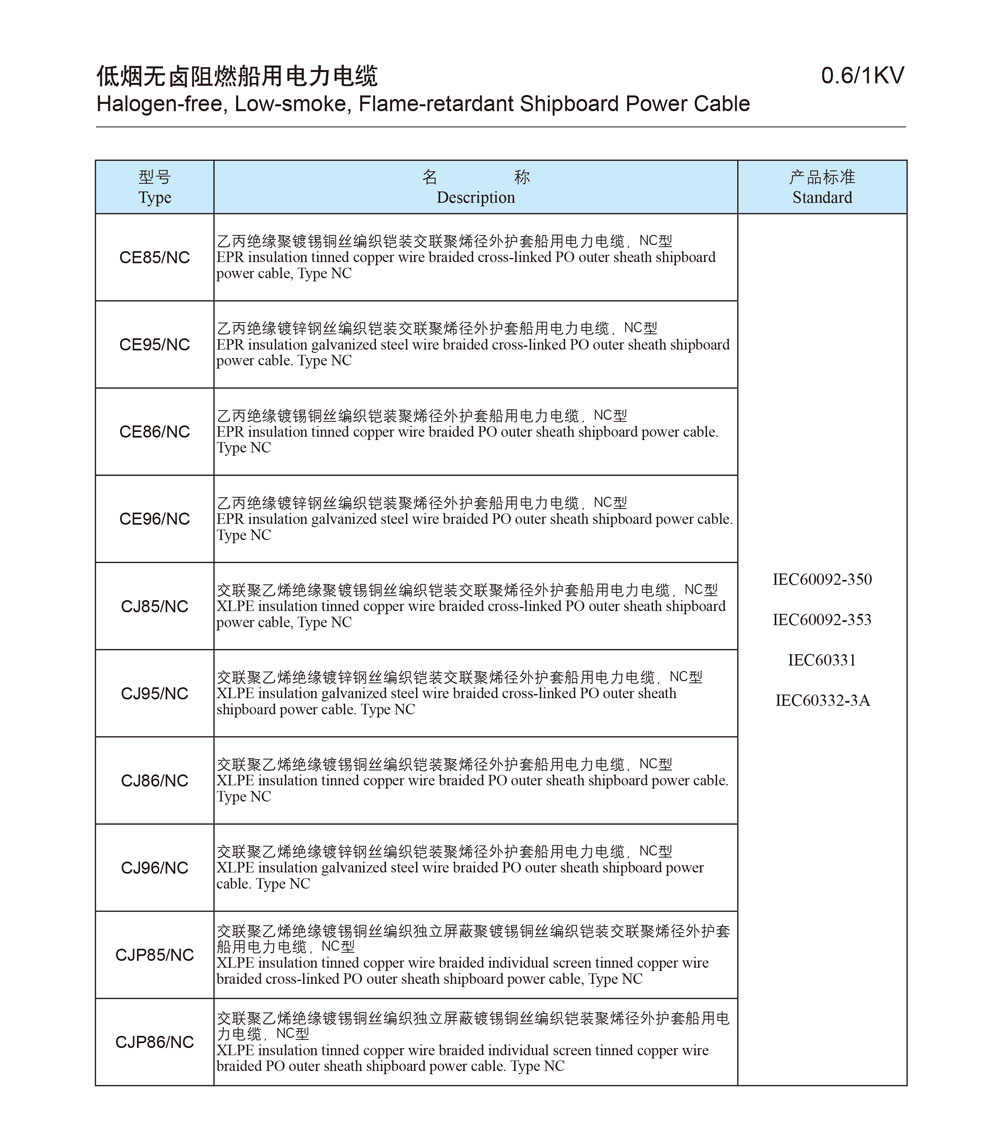

CE85/NC | 乙丙绝缘聚镀锡铜丝编织铠装交联聚烯径外护套船用电力电缆,NC型 EPR insulation tinned copper wire braided cross-linked PO outer sheath shipboard power cable, Type NC | IEC60092-350 IEC60092-353 IEC60331 IEC60332-3A |
CE95/NC | 乙丙绝缘镀锌钢丝编织铠装交联聚烯径外护套船用电力电缆,NC型 EPR insulation galvanized steel wire braided cross-linked PO outer sheath shipboard power cable. Type NC | |
CE86/NC | 乙丙绝缘镀锡铜丝编织铠装聚烯径外护套船用电力电缆,NC型 EPR insulation tinned copper wire braided PO outer sheath shipboard power cable. Type NC | |
CE86/NC | 乙丙绝缘镀锡铜丝编织铠装聚烯径外护套船用电力电缆,NC型 EPR insulation tinned copper wire braided PO outer sheath shipboard power cable. Type NC | |
CE96/NC | 乙丙绝缘镀锌钢丝编织铠装聚烯径外护套船用电力电缆,NC型 EPR insulation galvanized steel wire braided PO outer sheath shipboard power cable. Type NC | |
CJ85/NC | 交联聚乙烯绝缘聚镀锡铜丝编织铠装交联聚烯径外护套船用电力电缆,NC型 XLPE insulation tinned copper wire braided cross-linked PO outer sheath shipboard power cable, Type NC | |
CJ95/NC | 交联聚乙烯绝缘镀锌钢丝编织铠装交联聚烯径外护套船用电力电缆,NC型 XLPE insulation galvanized steel wire braided cross-linked PO outer sheath shipboard power cable. Type NC | |
CJ86/NC | 交联聚乙烯绝缘镀锡铜丝编织铠装聚烯径外护套船用电力电缆,NC型 XLPE insulation tinned copper wire braided PO outer sheath shipboard power cable. Type NC | |
CJ96/NC | 交联聚乙烯绝缘镀锌钢丝编织铠装聚烯径外护套船用电力电缆,NC型 XLPE insulation galvanized steel wire braided PO outer sheath shipboard power cable. Type NC | |
CJP85/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚镀锡铜丝编织铠装交联聚烯径外护套船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen tinned copper wire braided cross-linked PO outer sheath shipboard power cable, Type NC | |
CJP86/NC | 交联聚乙烯绝缘镀锡铜丝编织独立屏蔽镀锡铜丝编织铠装聚烯径外护套船用电力电缆,NC型 XLPE insulation tinned copper wire braided individual screen tinned copper wire braided PO outer sheath shipboard power cable. Type NC | |
CJPF86/NC | 交联聚乙烯绝缘无卤绕包型内套镀锡铜丝编织铠装聚烯径外套船用电力电缆,NC型 XLPE insulation Halogen-free wrapping type inner sheath tinned copper wire braided PO outer sheathed shipboard power cable, Type NC | |
CJPF96/NC | 交联聚乙烯绝缘无卤绕包型内套镀锌钢丝编织铠装聚烯径外套船用电力电缆,NC型 XLPE insulation Halogen-free wrapping type inner sheath galvanized steel wire braided PO outer sheathed shipboard power cable, Type NC | |
CJPJ85/NC | 交联聚乙烯绝缘无卤绕包型内套镀锡铜丝编织铠装交联聚烯径外套船用电力电缆,NC型 XLPE insulated Halogen-free wrapping type inner sheathed tinned copper wire braided cross-linked PO outer sheathed shipboard power cable, Type NC | |
CJPJ95/NC | 交联聚乙烯绝缘无卤绕包型内套镀锌钢丝编织铠装交联聚烯径外套船用电力电缆,NC型 XLPE insulation Halogen-free wrapping type inner sheath galvanized steel wire braided cross-linked PO outer sheath shipboard power cable, Type NC |
