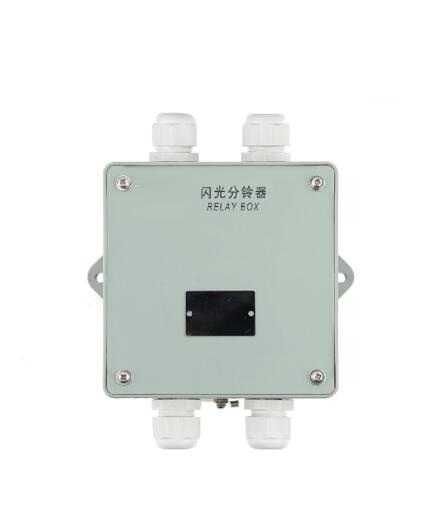

KL-1G2G Relay Box

Our company is specialized in manufacturing and exporting a wide range of marine equipment to our global clients, we also work as a shipbuilder.

E-mail:tzgomarine@163.com

If you are interested in our products, you can:

Product Details

Function
Relay box is used for auto telephone and batteryless telephone.
With two sets of active output，With one sets of passive contact output，Contact output normally close or rhythm is optional.

Power supply:
KL-1G DC24V
KL-2G AC220V±10%
Color: green gray（RAL 6034）
IP class: IP44
Weight: 0.64/1.0Kg
Active output capacity:
KL-1G DC24V/1A
KL-2G AC220V/1A
Passive contact load (resistance): 8A/250VAC
Passive contact maximum switchover voltage: 440VAC/125VDC

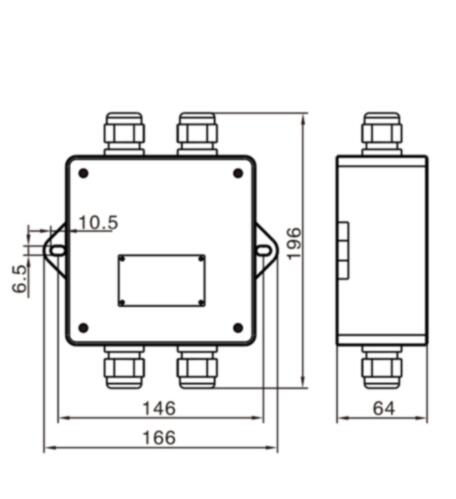

Stuffing box cable entrance hole size: 4-Φ12mm
