Remote Control Orange Peel Grab

Category: Grabs

Our company is specialized in manufacturing and exporting a wide range of marine equipment to our global clients, we also work as a shipbuilder.

E-mail:tzgomarine@163.com

If you are interested in our products, you can:

Product Details

Remote Control Orange Peel Grab

Description

Remote Control Orange Peel Grab

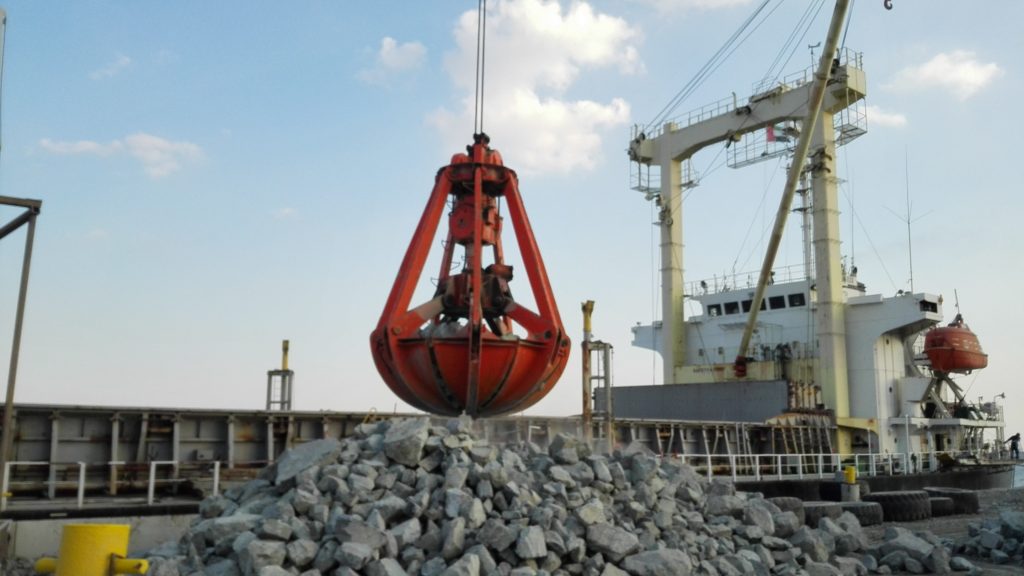

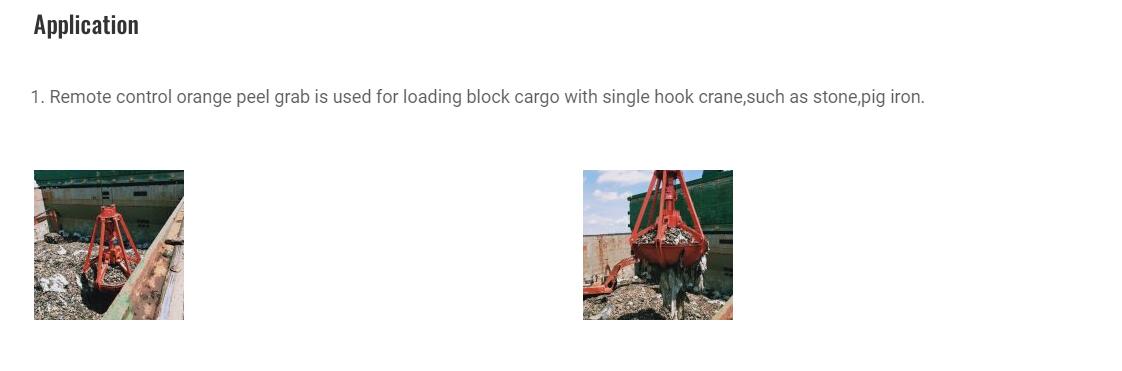

Remote Control Orange Peel Grab is mainly used for loading block cargo with single hook crane, such as stone, pig iron,woodchips. The opening speed of the grab can be varied automatically to adapt to block cargo with different levels.

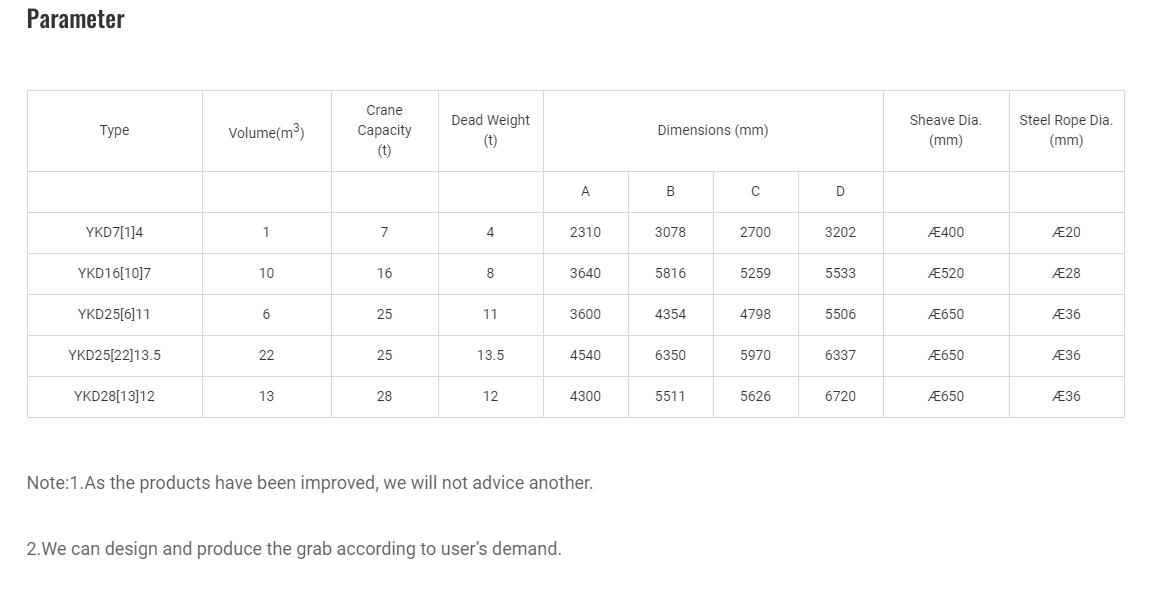

Parameter

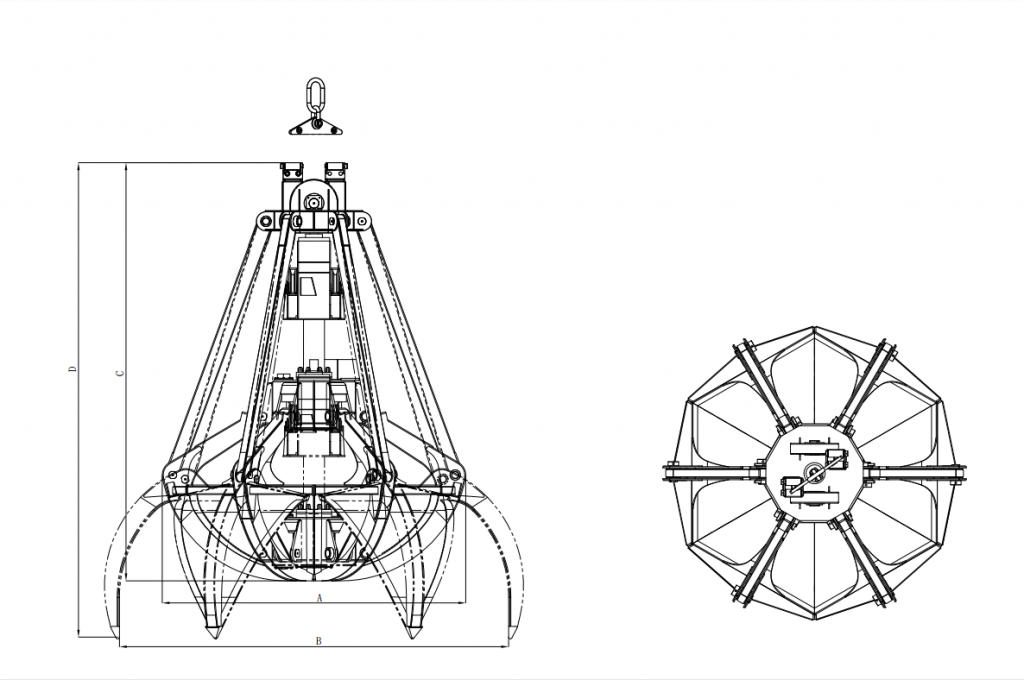

Type	Volume(m³)	Crane Capacity (t)	Dead Weight (t)	Dimensions (mm)				Sheave Dia. (mm)	Steel Rope Dia. (mm)
				A	B	C	D
YKD7[1]4	1	7	4	2310	3078	2700	3202	Æ400	Æ20
YKD16[10]7	10	16	8	3640	5816	5259	5533	Æ520	Æ28
YKD25[6]11	6	25	11	3600	4354	4798	5506	Æ650	Æ36
YKD25[22]13.5	22	25	13.5	4540	6350	5970	6337	Æ650	Æ36
YKD28[13]12	13	28	12	4300	5511	5626	6720	Æ650	Æ36
