Four Rope Timber Grab

Category: Grabs

Our company is specialized in manufacturing and exporting a wide range of marine equipment to our global clients, we also work as a shipbuilder.

E-mail:tzgomarine@163.com

If you are interested in our products, you can:

Product Details

Description

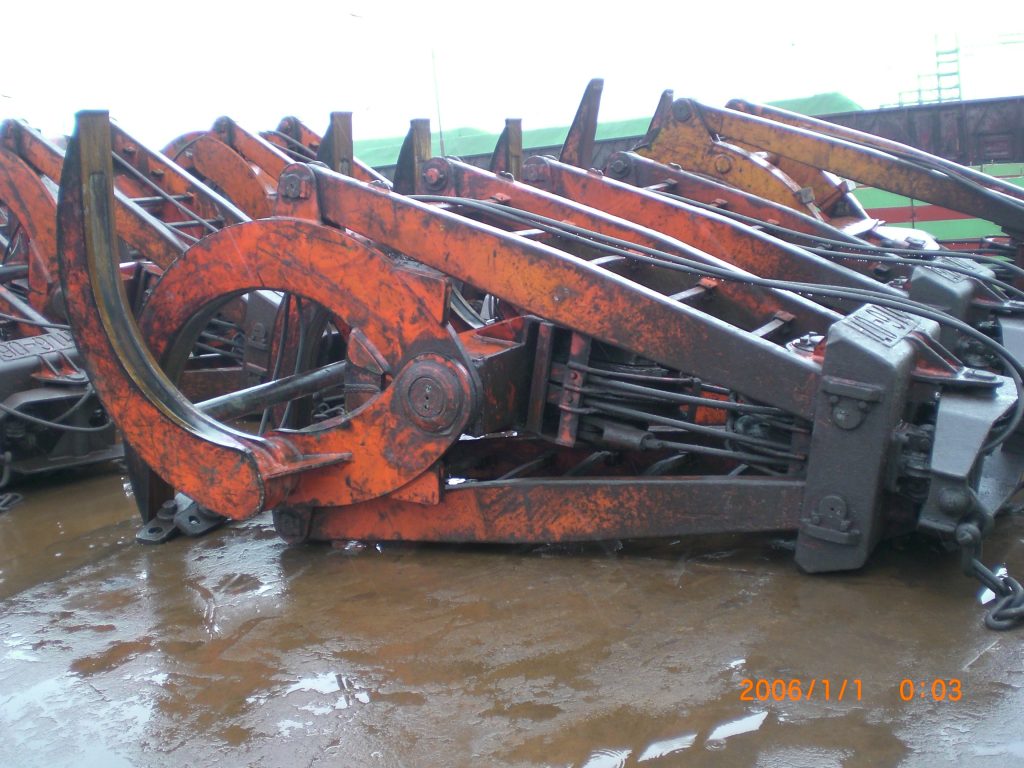

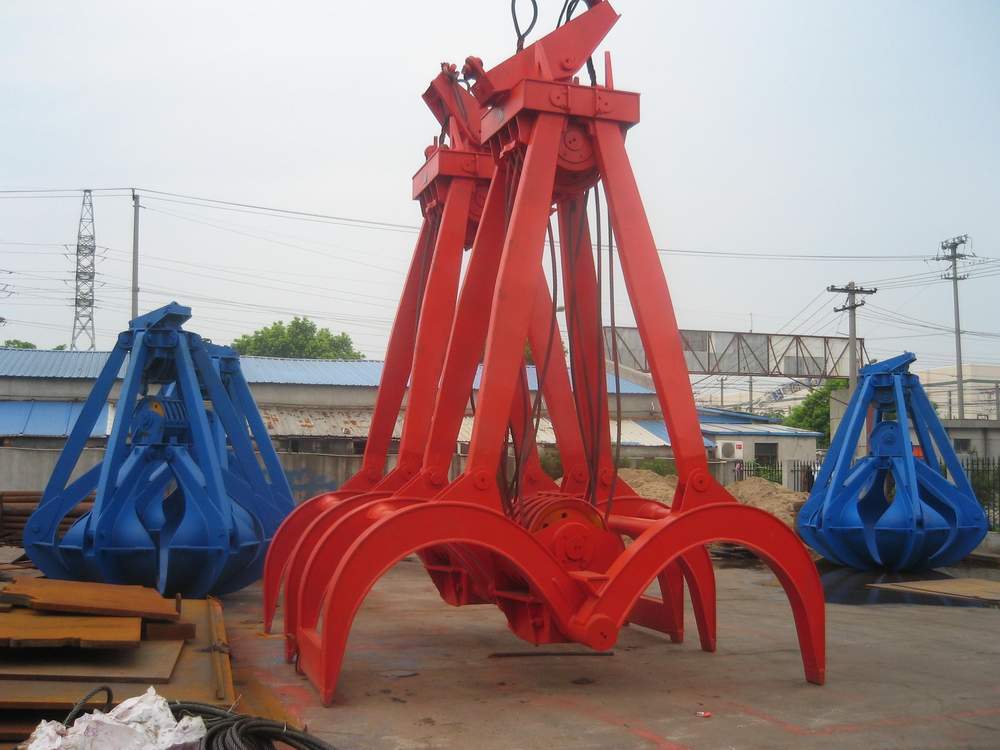

4-rope timber grab is equipped for crane, which has four ropes. The kind of grab is simple structure, convenient operation, and single rope grab has novel opening and closing mechanism, reliable action, which is a kind of efficient tool for loading and unloading bulk log, and which is suitable to be used on the working site such as port, forestry centre, woodyard. The lifting capacity of crane is normally 5t-25t.

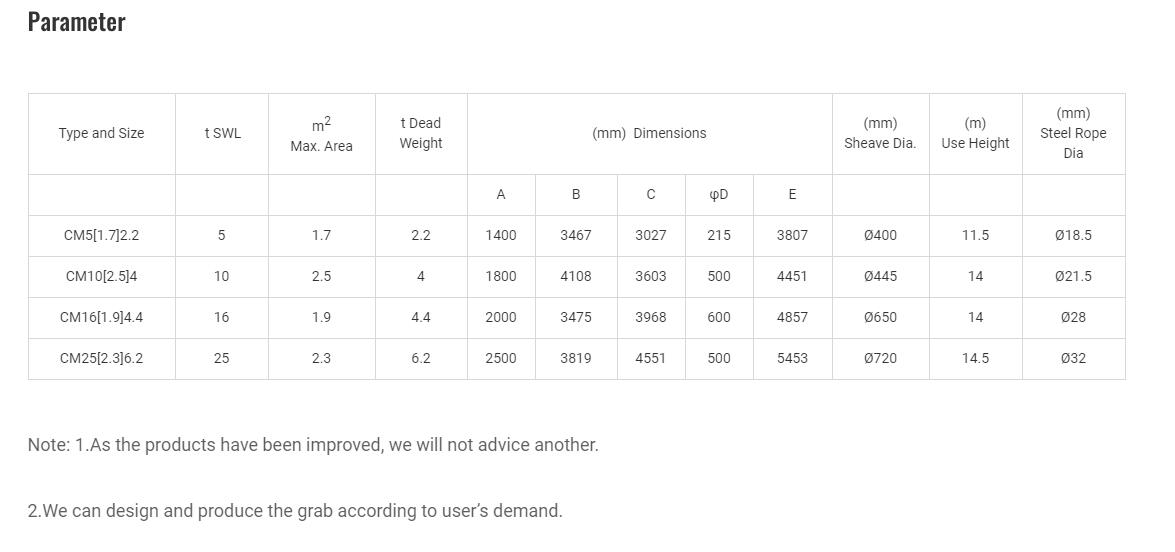

Parameter

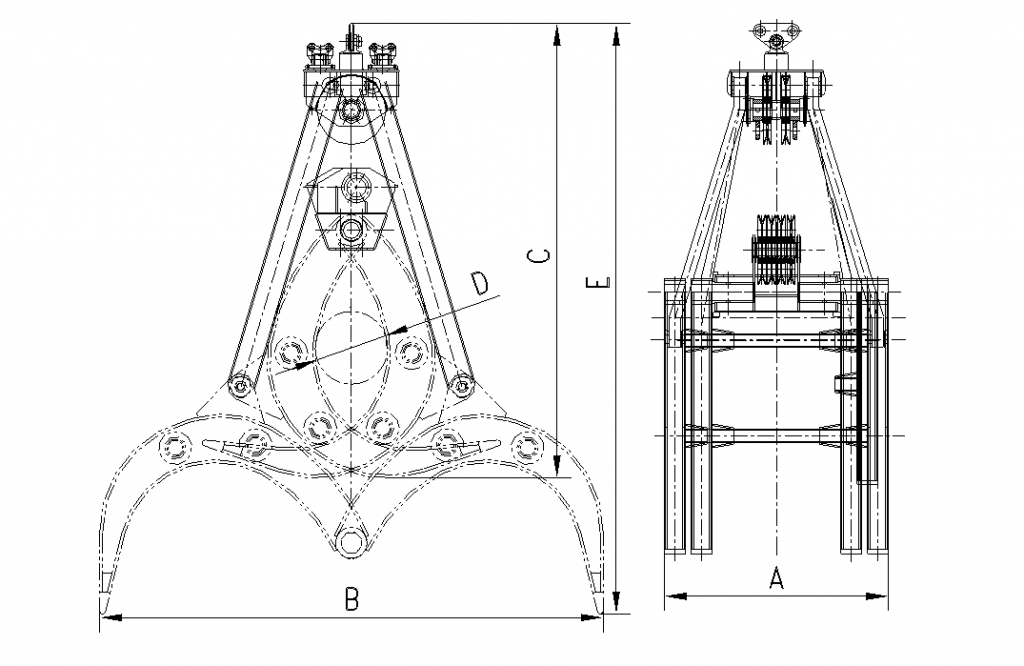

Type and Size	t SWL	m² Max. Area	t Dead Weight	(mm) Dimensions					(mm) Sheave Dia.	(m) Use Height	(mm) Steel Rope Dia
				A	B	C	φD	E
CM5[1.7]2.2	5	1.7	2.2	1400	3467	3027	215	3807	Ø400	11.5	Ø18.5
CM10[2.5]4	10	2.5	4	1800	4108	3603	500	4451	Ø445	14	Ø21.5
CM16[1.9]4.4	16	1.9	4.4	2000	3475	3968	600	4857	Ø650	14	Ø28
CM25[2.3]6.2	25	2.3	6.2	2500	3819	4551	500	5453	Ø720	14.5	Ø32
