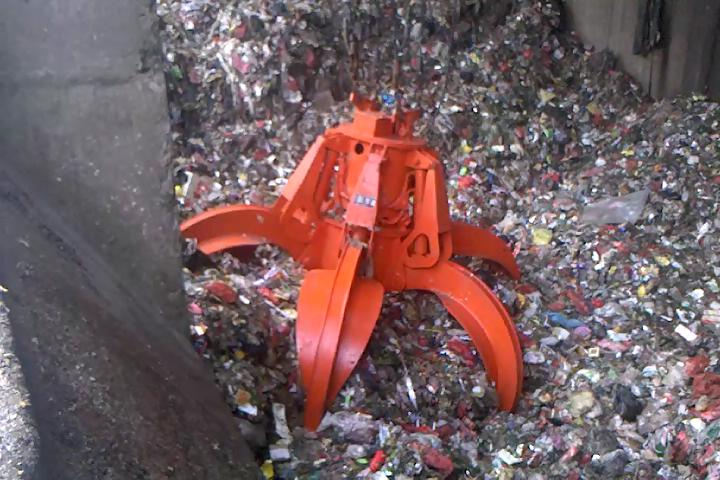

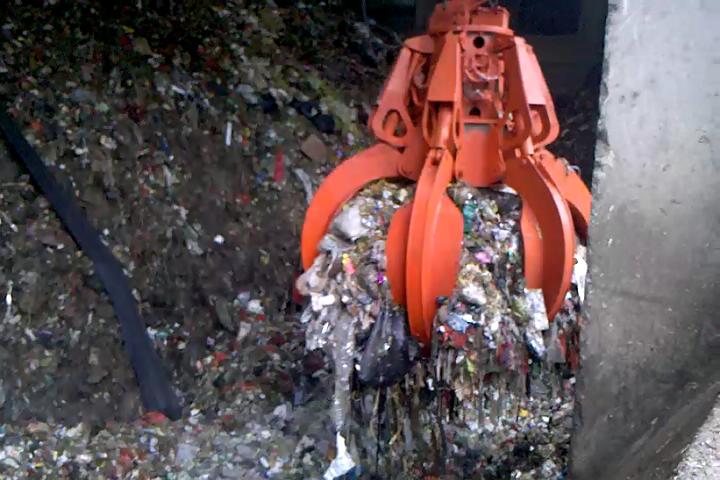

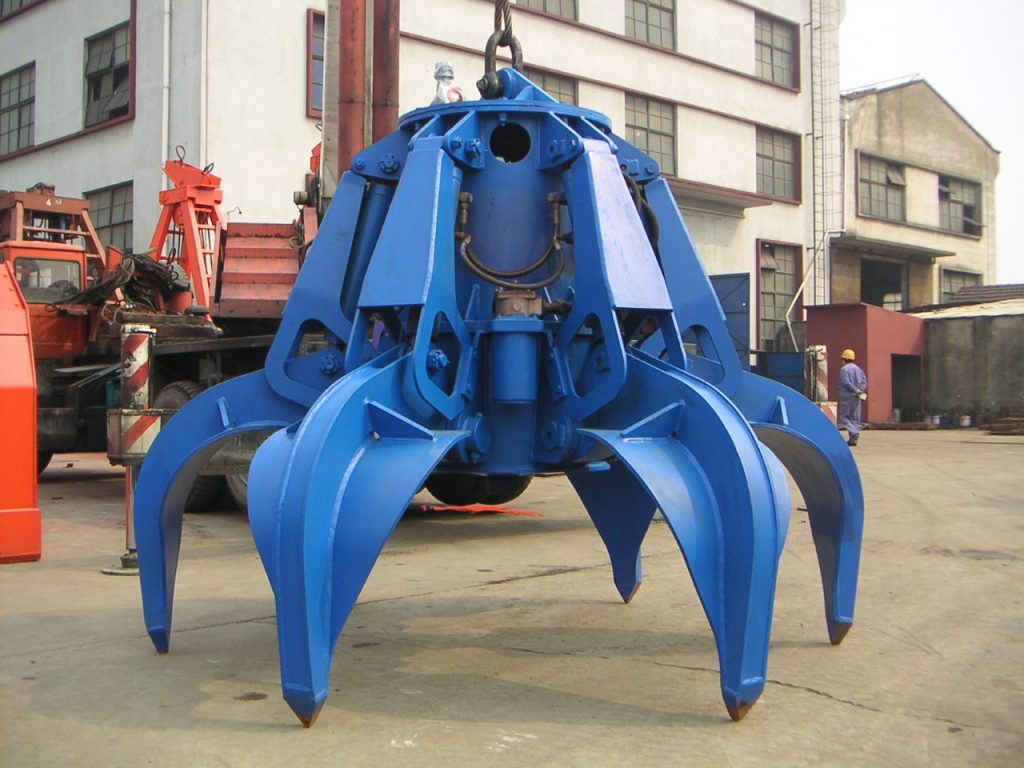

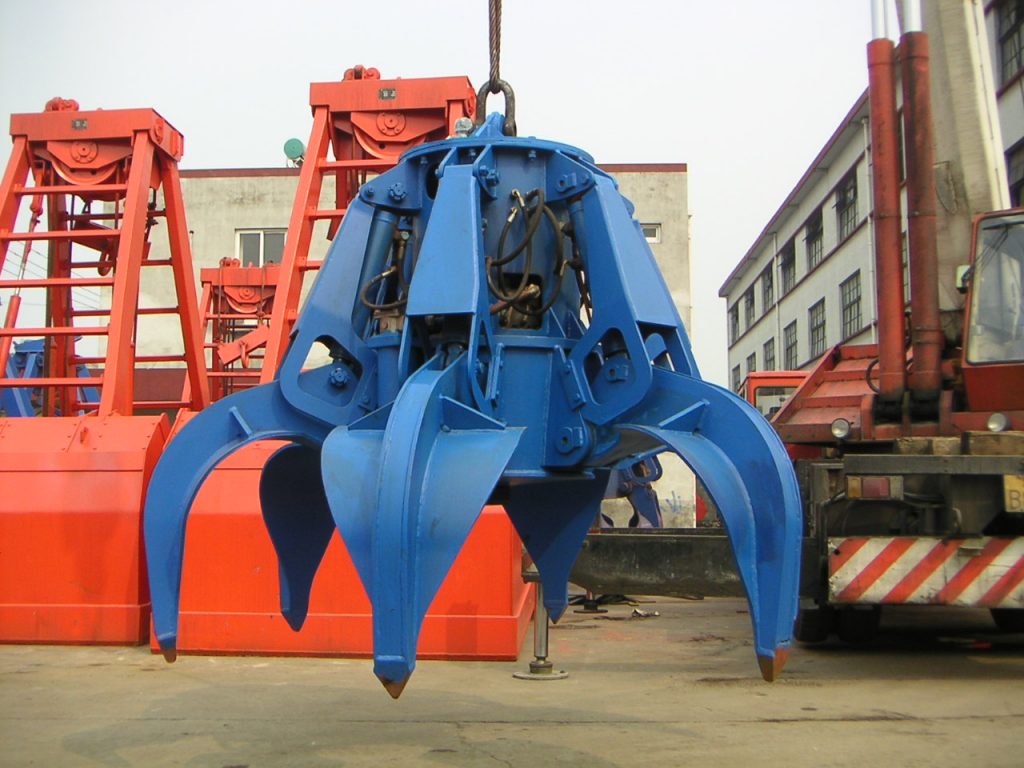

Motor-hydraulic Orange Peel Garbage Grab
Description
Low temperature rise; 24 hours working a day; Motor-Hydraulic Garbage Grab has hydraulic power and control system itself, and the hydraulic power system is imported from Europe and USA. The grab uses constant output pump and servo system. The flow of pump can change by itself according to working pressure. When the pressure reaches the max pressure, the flow is almost zero, so it can reduce the overflow, and reduce the temperature rise of oil. The opening and closing is controlled by valves or positive inversion motor which ensures the grab can positive inversion rotate frequently. The grab can be designed as half-close or full-open type with long teeth. The peels of the grab are particular, it is easy to grab garbage. The grab has six or eight peels, and each peel is driven by an oil cylinder, so the material won’t leak.

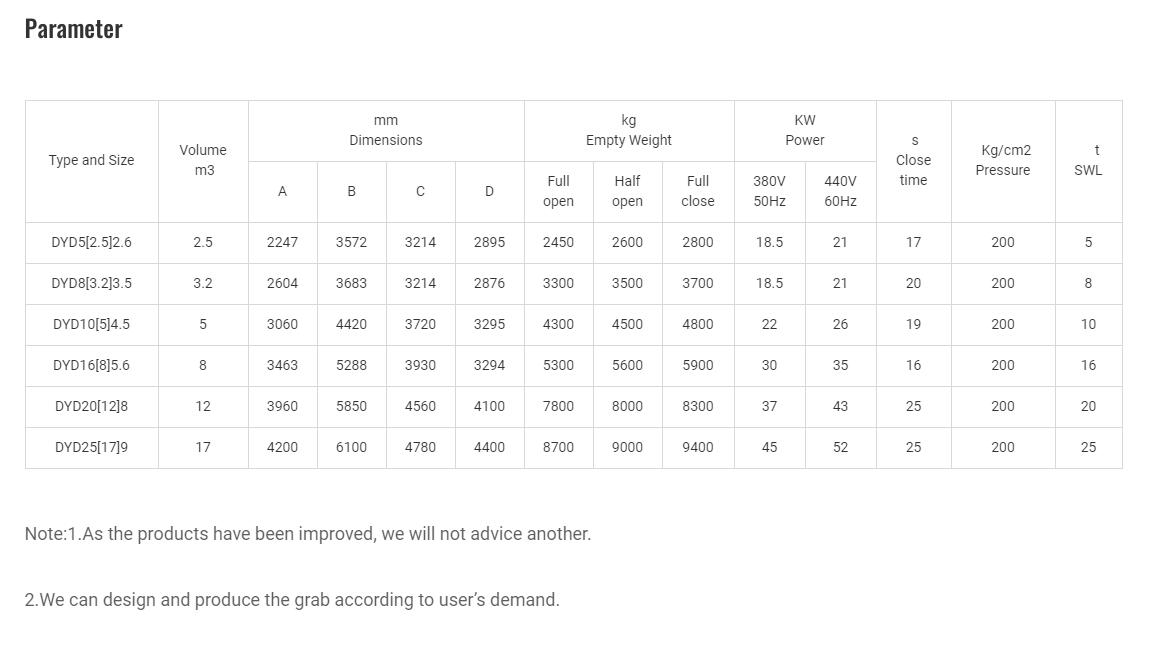

Parameter
Type and Size | Volume m3 | mm Dimensions | kg Empty Weight | KW Power | s Close time | Kg/cm2 Pressure | t SWL | ||||||
A | B | C | D | Full open | Half open | Full close | 380V 50Hz | 440V 60Hz | |||||
DYD5[2.5]2.6 | 2.5 | 2247 | 3572 | 3214 | 2895 | 2450 | 2600 | 2800 | 18.5 | 21 | 17 | 200 | 5 |
DYD8[3.2]3.5 | 3.2 | 2604 | 3683 | 3214 | 2876 | 3300 | 3500 | 3700 | 18.5 | 21 | 20 | 200 | 8 |
DYD10[5]4.5 | 5 | 3060 | 4420 | 3720 | 3295 | 4300 | 4500 | 4800 | 22 | 26 | 19 | 200 | 10 |
DYD16[8]5.6 | 8 | 3463 | 5288 | 3930 | 3294 | 5300 | 5600 | 5900 | 30 | 35 | 16 | 200 | 16 |
DYD20[12]8 | 12 | 3960 | 5850 | 4560 | 4100 | 7800 | 8000 | 8300 | 37 | 43 | 25 | 200 | 20 |
DYD25[17]9 | 17 | 4200 | 6100 | 4780 | 4400 | 8700 | 9000 | 9400 | 45 | 52 | 25 | 200 | 25 |
Note:1.As the products have been improved, we will not advice another.
2.We can design and produce the grab according to user’s demand.
