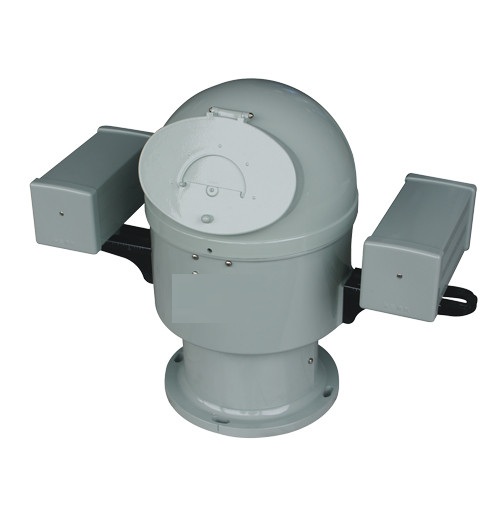

CPT-190 desktop magnetic compass
CPT-190 magnetic compass is a desktop liquid magnetic compass. It can be used for steering compass for small and medium-sized ships. Its technical performance index is completely a Class A magnetic compass designed and manufactured according to the national standard GB/T 14108-2011 "General Technical Conditions for Marine Class A Magnetic Compactor. It has the advantages of beautiful appearance, high precision, convenient correction, stable performance, clear lighting, etc. It is a necessary navigation aid for medium and small ships.
Key technical data:
project | Data |
dial diameter | Φ190mm |
Dial indexing | 0 ° ~ 360 ° 1 ° per cell |
operating temperature | -25 ℃ ~ 60 ℃ |
pointing error (H = 35 μ T,T = 20±3 ℃) | ≤ 0.5 ° |
half period (H = 35 μ T,T = 20±3 ℃) | ≥8.62 S |
friction error (H = 35 μ T,T = 20±3 ℃) | ≤ 0.09 ° |
Principal semicircle self-difference correction energy | 1 ° ~ 45 ° |
quadrant deviation correction energy | 0.5~10 |
tilt deviation correction energy | -75 ~ +75 μT |
lighting power supply | AC 220V,DC 24V |
Dimensions | 750 × 346 × 570mm |
mounting hole size | hole spacing 275 aperture Φ12 |
total weight | 27kg |
