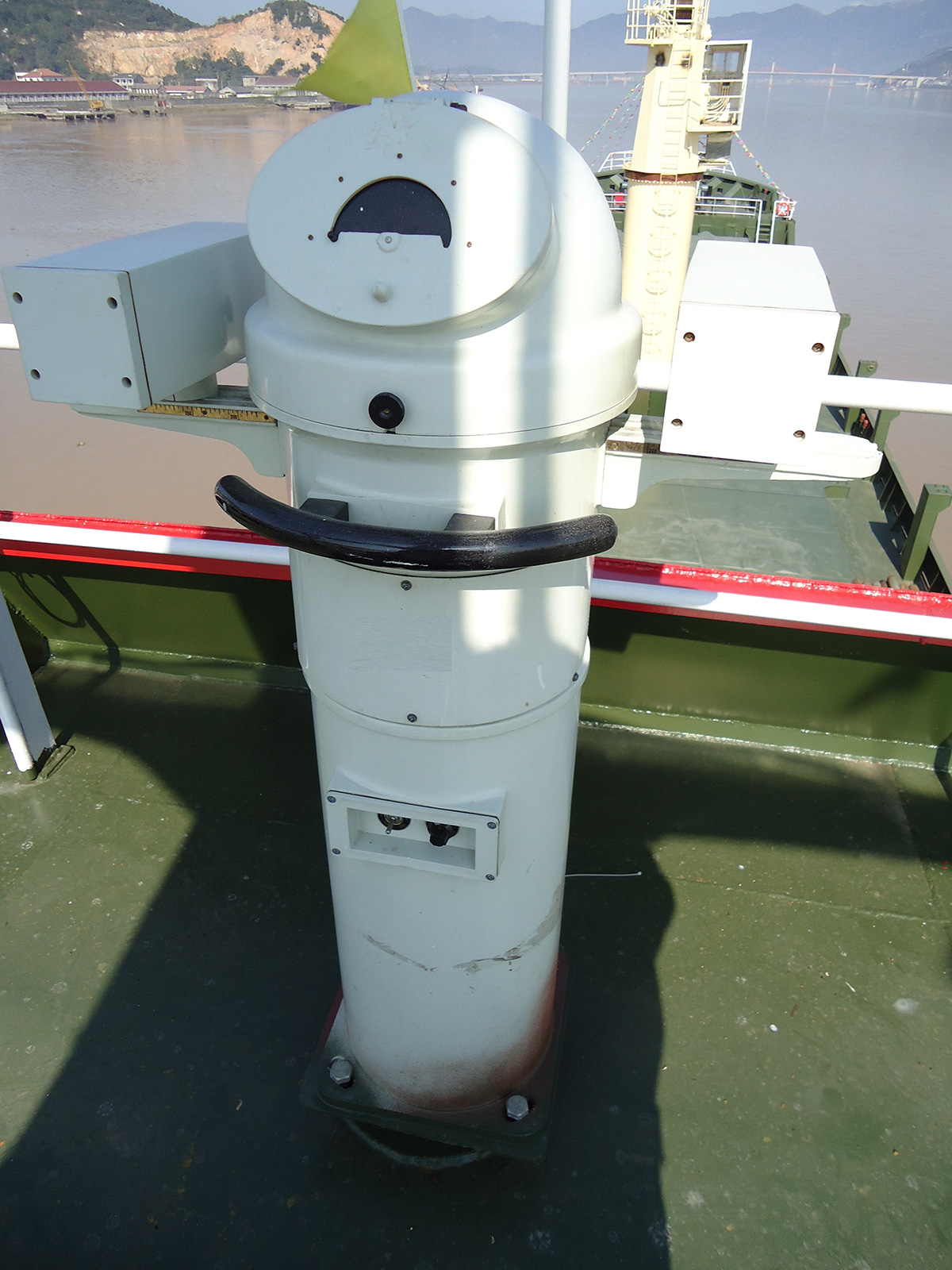

CPL-190 vertical magnetic compass
CPL-190 vertical magnetic compass is a class A transparent liquid magnetic compass designed and manufactured according to the national standard GB/T 14108-2011 "General Technical Conditions for Marine Class A Magnetic Compactor. It is suitable for large and medium-sized ships to be used as standard compass or steering compass for determining orientation and indicating heading. It has the advantages of high precision, convenient correction, stable performance, clear lighting, etc.
Main technical parameters:
project | Data |
dial diameter | Φ190mm |
Dial indexing | 0 ° ~ 360 ° 1 ° per cell |
operating temperature | -25 ℃ ~ 60 ℃ |
pointing error (H = 35 μ T,T = 20±3 ℃) | ≤ 0.5 ° |
half period (H = 35 μ T,T = 20±3 ℃) | ≥8.62 S |
friction error (H = 35 μ T,T = 20±3 ℃) | ≤ 0.09 ° |
Principal semicircle self-difference correction energy | 1 ° ~ 45 ° |
sub-semicircle self-difference correction energy | 1 ° ~ 6 ° (magnetic inclination angle Q = 45 °) |
quadrant deviation correction energy | 0.5~10 |
tilt deviation correction energy | -75 ~ +75 μT |
lighting power supply | AC 220V,DC 24V |
Dimensions | 720 × 430 × 1300mm |
mounting hole size | hole spacing 420 aperture Φ16 |
total weight | 40kg |
